SG215Sensibly equivalent¶ to:CV3702See also:
|
|
|

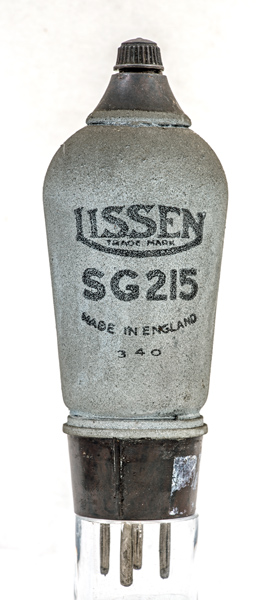

The Lissen SG215 tetrode was introduced in 1929 with a screw top cap. It is a screen grid or tetrode valve for RF amplification in battery operated broadcast receivers.It was made in both clear - for using an external screening can - and metallised versions - integral screening as here.

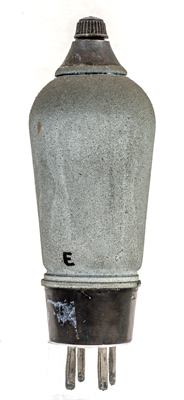

The reverse is plain zinc loaded paint.The balloon envelope is 45 mm in diameter and, excluding the B4 base pins, is 114 mm tall.Reference: Data. Type SG215 was first introduced in 1928. See also 1928 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | tc |  g2 | g1 | f | f | a |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | ra | gm |
| 2.0 | 0.15 | 150 | 60 | - | 1.5 | 0.25 | 0.9M | 1.1 |
|
