4069A CV623 CV623 VT-106

Extras ▼

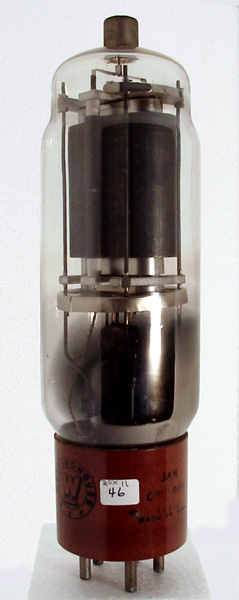

The 803 transmitting pentode was made for government use only, and this suggests a special quality version. The maximum anode dissipation was designed to be 125 Watts and in Class C RF amplifier mode it could produce 155 Watts of output power.
The 803 has a thoriated tungsten filament.
See 803 for details.
The wide glass tube envelope is 60 mm in diameter and, excluding the base pins is 216 mm tall.
Reference: Data-sheet. Type 803 was first introduced in 1937. See also 1937 adverts.



Pin Connections
1
2
3
4
5
tc
f
g2
g1
g3
f
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
10.0
5.0
2,000
600
-
160
20
Thanks to Frank Philipse for supplying the above PDF datasheet.
