CV128

Sensibly equivalent to:
SU750

Extras ▼



The CV128 rectifier is a high power valve. The peak inverse voltage under load is 7,500 Volts (9,000 Volts off load) and the peak rectifier output may rise to 2 Amps.

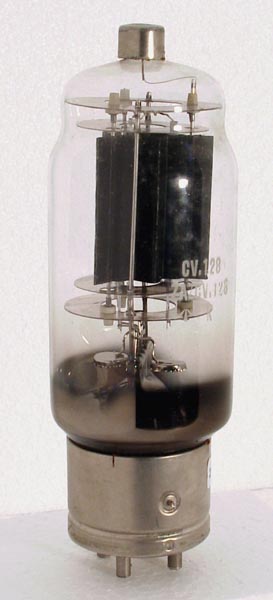

The anode is a triangular box connected to the top cap, to provide good insulation in a high voltage device both ceramic and mica are used. The valve was made in America.
Peter (G4PLW) writes that the CV128 was used in WS 53 as a half wave rectifier. The anode voltage was 1500 Volts.
The classic envelope is 55 mm in diameter and, excluding the 4 special base pins, is 165 mm tall.
References: Datasheet & G4PLW.



Pin Connections
1
2
3
4
-
h,k
-
htc_a



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
10.0
2.4
3,000
250.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 02, 2013.
shape:classic construction:pinch type:rectifier.hw age:1940.1950 base: pins:4 pin:1.- pin:2.h.k pin:3.- pin:4.htc.a
