5D/100A

Sensibly equivalent to:
CV1627

Extras ▼

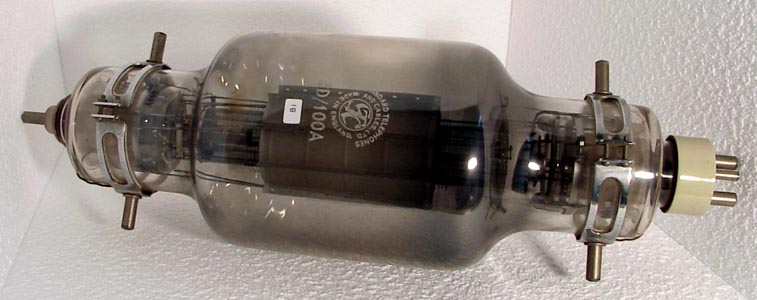

The 5D/100A is a large transmitting pentode, for use on the Medium and Long wavelengths, and into the lower frequency HF region.
The wide glass tube envelope is 152 mm in diameter and, including the base pins, is 534 mm tall.
Reference: Datasheet. Type 5D/100A was first introduced in 1939.



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Pdiss
f.max
10.0
16.0
3000
850
1000W
10MHz
PDF scanned from an original document held by the museum
