8608

Sensibly equivalent to:
EL5070

Extras ▼



The 8608 is described as a premium quality power pentode. It was designed for wideband video power amplification.

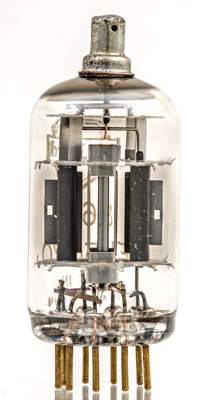

The anode is a box on either side of the valve. The working face is about 5 mm wide and the box reaches back towards the glass by about 8 mm. The bright shapes are the beam plates and on the left can be seen the edge of the screen grid winding.

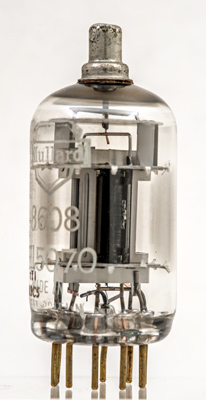

On the right the screen grid winding can be more clearly seen. The wires are thin and close spaced, much like the control grid of lower mutual conductance valves.

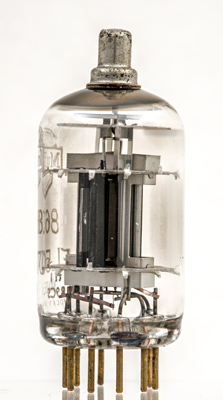

Looking along the grid axis reveals the geometry of the construction. Both anode sections are joined together at the top.
For microscope images see 8608.
The wide glass tube envelope is 28 mm in diameter and, excluding the B9A base pins, is 61 mm tall.
Reference: Data-sheet. Type 8608 was first introduced in 1965. See also 1965 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
tc
ic
g3
g2
h
h
g3
k
g1
k
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
μ
6.3
0.6
125
125
-3.0
50.0
5.5
20,000
45
30
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 22, 2024.
