PM24A

Sensibly equivalent to:
CV1167 NR43
See also:
The Philips-Mullard (PM) Series - 1931: The New Mains Valves - Valves for Your Set

Extras ▼



The PM24A is an example of an early directly heated mains valve from 1929 and was designed as an audio output valve. With a load resistance of 8k Ohms it could deliver 1.5 Watts.
In the 1930's it was improved and the new ratings are in the second set of parameters. With a load resistance of 10k Ohms it could deliver 2.5 Watts at 10% distortion.

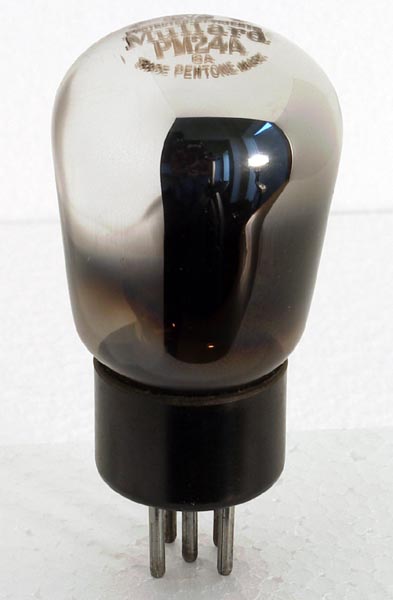

The balloon envelope is 48 mm in diameter and excluding the B5 base pins it is 87 mm tall.
References: 1931 data-sheet & 1043. Type PM24A was first introduced in 1929. See also 1929 adverts.



Pin Connections
B5
1
2
3
4
5
a
g1
f-
f+
g2



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
4.0
0.275
300
200
-21.0
21
6.0
2.0



Absolute Maximum Operating Conditions
Pentode
Va
Vs
Vg
mAa
mAs
gm
300
200
-22.5
20
3.5
2.0
Thanks to Andy Cowley for supplying the above PDF datasheet.
Updated May 26, 2018.
