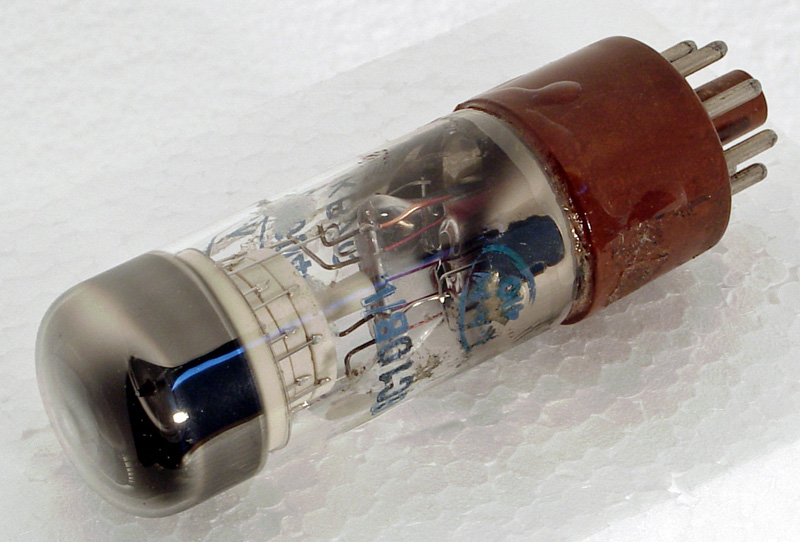

The GC10B/L is a long life cold cathode counting and display tube. The orange display comes from the neon gas inside. This tube has a central common anode. The discharge would cause one of the cathodes to glow and its position would indicate a number. To advance the display the inter cathode pin electrode(s) would be energised and so would the next cathode. The discharge would walk to the next cathode using the pin(s) as a guide.
The end window envelope is 27 mm in diameter and, excluding the IO base pins, is 84 mm tall.
References: Datasheet


Absolute Maximum Operating Conditions
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated May 27, 2014.
shape:end.window construction:pinch type:counter/indicator age:1950.1960 base:io pins:8 pin:
