55875R



Extras ▼

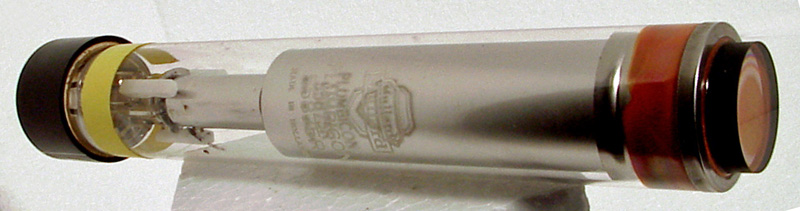

The 55875R camera tube is a red sensitive Plumbicon. Three, or four, would be used with suitable light splitting systems in a colour TV camera. We also have the 55875B blue sensitive pick-up tube.
The splitting would be done by prisms and dichroic filters and is optically inefficient and a lot of the incident light is lost through absorption before it reaches the pick-up tubes. Thus the pick-up tubes need to be very sensitive if abnormally high light levels are to be avoided.
In use the tube would be held within a complex of magnetic focus and scanning coils.
The end window envelope is 32 mm in diameter and, excluding the base pins, is 196 mm tall.
Reference: Observation.



Updated February 21, 2014.
