HP215

Sensibly equivalent to:
210SPT HP210 SPT2

Extras ▼

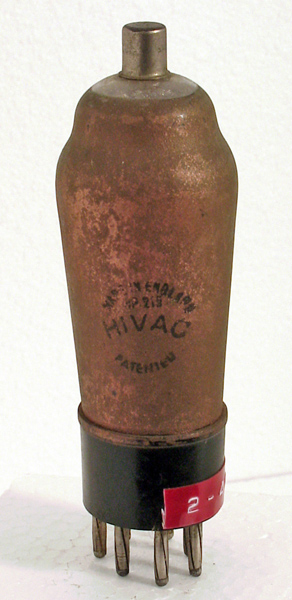

The HP215 battery variable μ pentode was produced in two versions, one on a B7 base and another on a B4 base. The latter had the screen grid internally connected to the filament.
The HP215 was designed as a pentode mixer.
The classic envelope is 36 mm in diameter and, excluding the B7 base pins, is 104 mm tall.
References: 1043. Type HP215 was first introduced in 1934.



Pin Connections
B7
1
2
3
4
5
6
7
tc
m
g1
g3
f
f
-
g2
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
2.0
0.15
150
70
-0
3.75
0.6
0.55
Updated December14, 2012.
shape:classic construction:pinch type:pentode age:1930.1940 base:b7 heater:2.0v pins:7 pin:1.m pin:2.g1 pin:3.g3 pin:4.f pin:5.f pin:6.- pin:7.g2 pin:tc.a
