5703WA


See also:
Subminiature Valves

Extras ▼

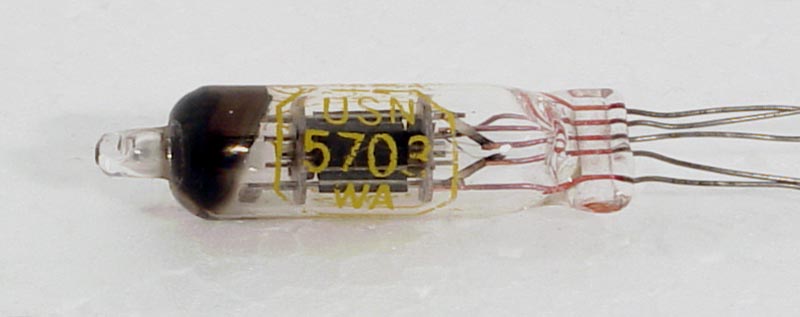

The 5703WA from Raytheon, is a post WWII experimental type.
Some other subminiature valves in the '57' range are clearly for military purposes (Type 5768 is listed as a 'rocket triode'! Probably designed for use in proximity fuses.).
One advantage of the very small size and weight is robustness to vibration and shock. Such a small valve would get very hot at the ratings indicated but it might not be required to operate for more than a few seconds.
The thin glass tube envelope is 9 mm in diameter and, excluding the base pins, is 38 mm tall.
References: Datasheet.



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
6.3
0.2
120
-2
9.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated December05, 2012.
