CV1482

Sensibly equivalent to:
CV3662 M501

Extras ▼

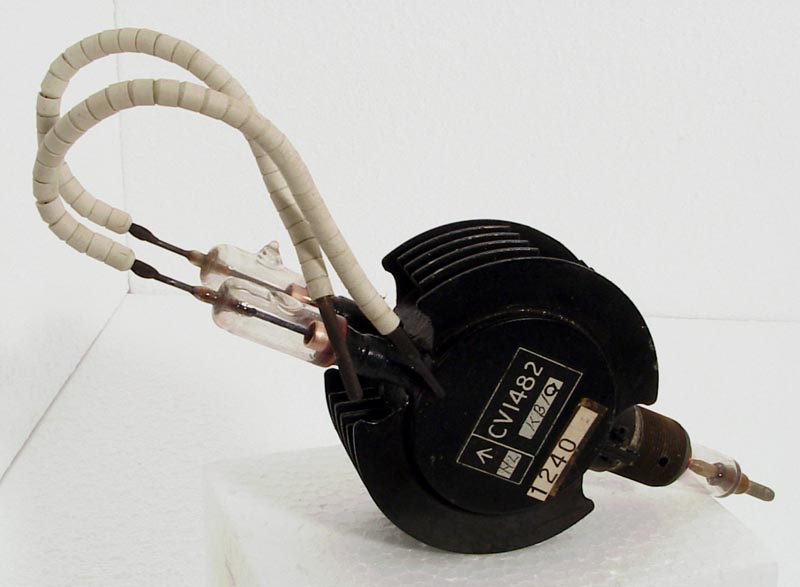

The CV1482 magnetron is seen without support cradle or magnet. The filament connections are the flying leads seen on the left. The anode connects to the right terminal, pictured past the output probe.
The basic magnetron is a fixed frequency device and this design was made in four variants (CV1479-82) to cover different frequencies.
The KB/Q identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the Q identifies the maker as English Electric Valve Co., Chelmsford.
See CV1481 for details.
The envelope is 75 mm in diameter and, excluding the base pins, is 190 mm tall, and 35 mm front to back.
Reference: Data-sheet.



Absolute Maximum Operating Conditions
General Notes
Vh
Ah
5.0
2.6
Thanks to Frank Philipse for supplying the above PDF datasheet.
