5J32

Sensibly equivalent to:
CV1538 ZP646

Extras ▼



The 5J32 two anode magnetron was produced for the USA Navy. It was designed to operate at between 90 and 450 MHz and could generate 125 Watts of CW output at 450 MHz, but with a DC input of 500 Watts.

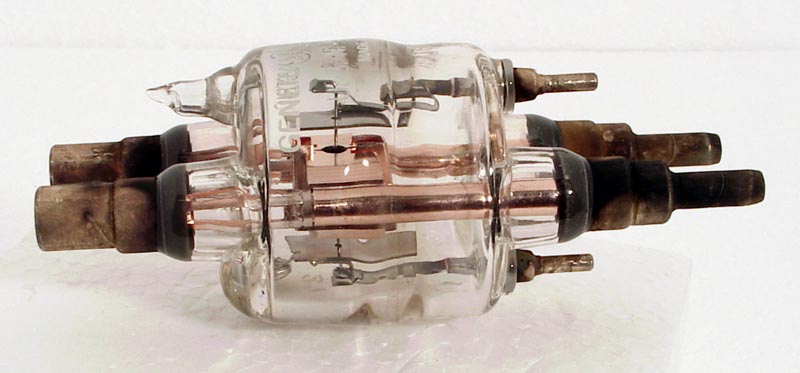

The filament can be seen as a thick wire running vertically through a circle formed between the two copper anodes.
The wide glass tube envelope is 47 mm in diameter and, tip to tip measures 124 mm.
References: Data-sheet, Private communication & 3002. Type 5J32 was first introduced in 1946.



Absolute Maximum Operating Conditions
General Notes
Vh
Ah
Va
2.1
40
2,500
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated August 25, 2019.
shape:wide.glass.tube construction:all.glass type:magnetron age:1940.1950 base: pins:4 pin:
