DL96

Sensibly equivalent to:
1P1 3C4 N25
See also:
25 mA Series Advert - 25 mA Series Valves for ABC Radios

Extras ▼

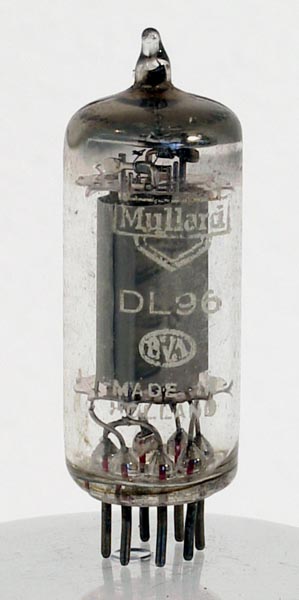

The DL96 is an audio output valve from Mullard's low consumption dry battery valves from 1954. The audio output is low at 0.2 Watts but considering the low filament power it is quite remarkable.
The thin glass tube envelope is 17 mm in diameter and, excluding the B7G base pins, is 46 mm tall.
References: Datasheet, 3002 & 1040. Type DL96 was first introduced in 1953.



Pin Connections
B7G
1
2
3
4
5
6
7
f-
a
g2
-
fct
g1
f+



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
D
1.4
0.05
85
85
-5.2
5
0.9
150,000
1.4
0.2
10%
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated December10, 2015.
