CV1758

Sensibly equivalent^¶ to:

1F2 1L4 DF92 E2016

Extras ▼

HMS Collingwood Other CV1758 exhibits

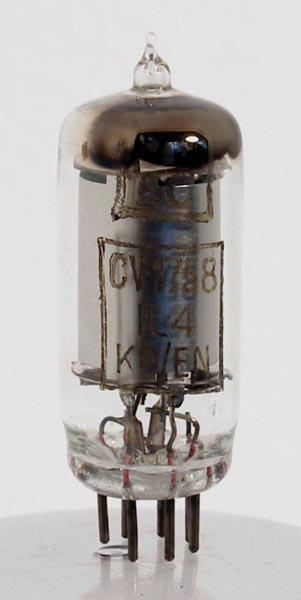

The CV1758 is a miniature RF amplifier pentode with very low filament consumption. The direct equivalent is the 1L4 as the CV specification makes clear. CV1758 would be used for portable radio equipment.

The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 43 mm tall.

References: Data-sheet & ¹⁰⁴⁰.

Pin Connections

B7G	1	2	3	4	5	6	7
	f-	a	g2	-	f-	g1	f+

Absolute Maximum Operating Conditions^¶

Pentode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra	gm
	1.4	0.05	90	67.5	0	3.7	1.4	0.5M	1.0

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated October 11, 2013.
