KT36



Extras ▼

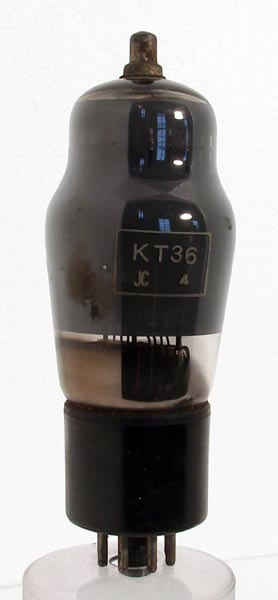

The KT36 was designed as a line output valve for television use.
The maximum positive surge on the anode is 4,000 Volts, and the dissipations are 10 W on the anode and 3 W on the screen grid.
The classic envelope is 44 mm in diameter, and excluding the IO base pins is 113 mm tall.
References: Datasheet, 1040 & 3002. Type KT36 was first introduced in 1948.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
-
h
-
g2
g1
-
h
k
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Pdiss
26
0.3
250
200
10W
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 16, 2013.
shape:classic construction:pinch type:pentode age:1940.1950 base:io heater:300ma pins:8 pin:1.- pin:2.h pin:3.- pin:4.g2 pin:5.g1 pin:6.- pin:7.h pin:8.k pin:tc.a
