CV5094

Sensibly equivalent to:
EL86

Extras ▼



The CV5094 is an output pentode with an anode dissipation of 12 Watts and is equivalent to the commercial EL86. The CV5094 is designed for a higher anode current and lower anode voltage than the EL84. This would suit transformerless designs of the type called single ended push pull see data-sheet. It was also specified for use as a series regulator.

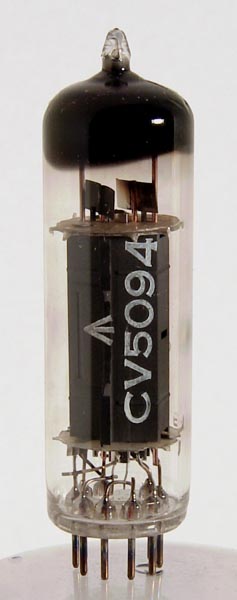

The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 68 mm tall.
References: Datasheet & 1040. Type CV5094 was first introduced in 1956.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
ic
g1
k,g3
h
h
ic
a
ic
g2



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
mAa
mAs
ra
gm
Pdiss
Pout
6.3
0.76
200
200
64
3.2
2,500
10
12W
5.3W
Thanks to Frank Philipse for supplying the above PDF datasheet.
