ECC34


See also:
Mullard EF42, ECC34 & EL38 Advert - Mullard Scroggie 08: ECC34 Advert - TV Timebase Circuit No. 1 Advert - TV Timebase Circuit No. 2 Advert

Extras ▼



The ECC34 double triode is a low impedance version of the ECC32. Mullard describe the ECC34 as a low impedance double triode with separate cathodes for use as a combined frame time base oscillator and current amplifier to feed the deflector coils in AC television receivers. It is also suited to instrumentation duties and is pin compatible with the ECC32. The low to medium impedance triodes are the workhorse of instruments such as oscilloscopes etc.

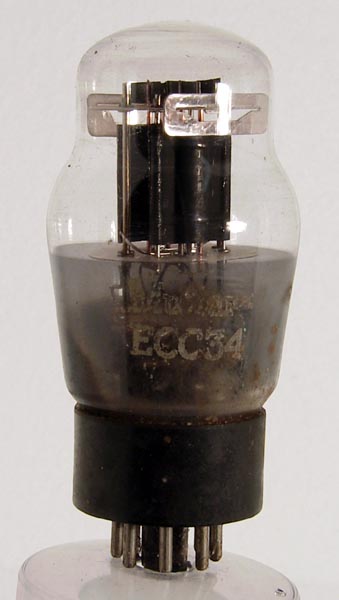

The classic envelope is 43 mm in diameter and, excluding the IO base pins, is 84 mm tall.
References: Data-sheet, 1040 & 1043. Type ECC34 was first introduced in 1946. See also 1946 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
g2
a2
k2
g1
a1
k1
h
h



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.95
250
-16
10.0
5,200
2.2
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated December21, 2020.
