7H7

Sensibly equivalent to:
CV895 VT-190 W143 W148 W81
See also:
Olympia Show 1947

Extras ▼



The 7H7 is a variable μ amplifier pentode. It is a high impedance device with a medium mutual conductance. Variable μ devices are primarily designed for IF and RF amplifiers in radio receivers. The anode current is quite high and with the large electrodes, this suggests that the device may have been designed for low noise input stages of HF communications receivers.
The 7H7 design dates to 1940 and was originally made in the USA, in the UK introduction was in 1947.

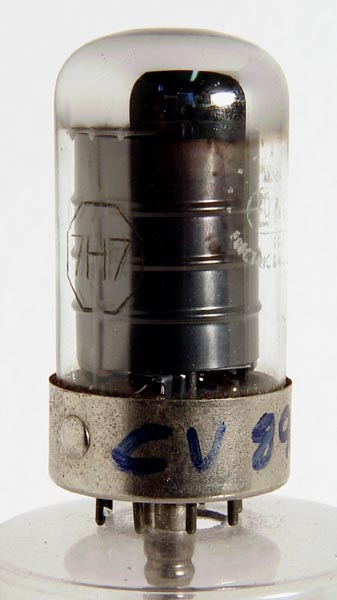

The wide glass tube envelope is 28 mm in diameter and, excluding the B8B base pins, is 54 mm tall.
References: Data-sheet & 1040. Type 7H7 was first introduced in 1940. See also 1940 adverts.



Pin Connections
B8B
1
2
3
4
5
6
7
8
h
a
g2
g3
s
g1
k
h



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
150
-2.4
10
3.2
0.8M
4.2
Thanks to Frank Philipse for supplying the above PDF datasheet.
