G210


See also:
Continental Imports of the 1930s - The Azide Process

Extras ▼

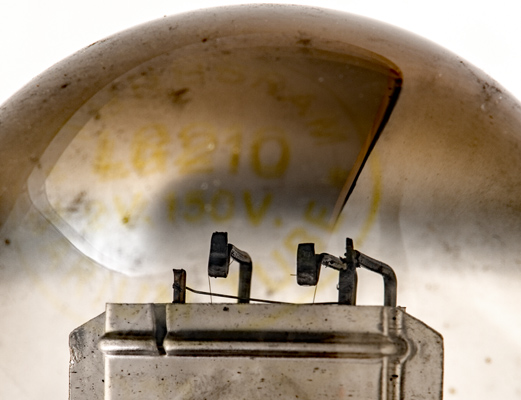

This exhibit is clearly labelled as having an anode voltage rating of 150 V. The filament is rated at 2.0 V.

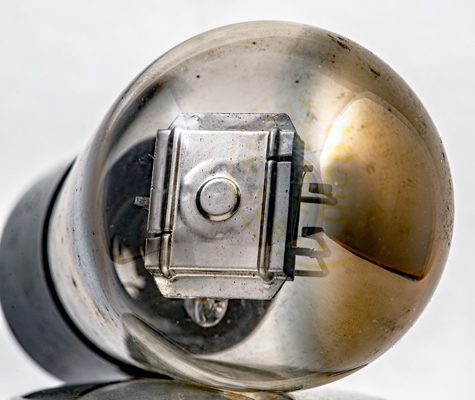

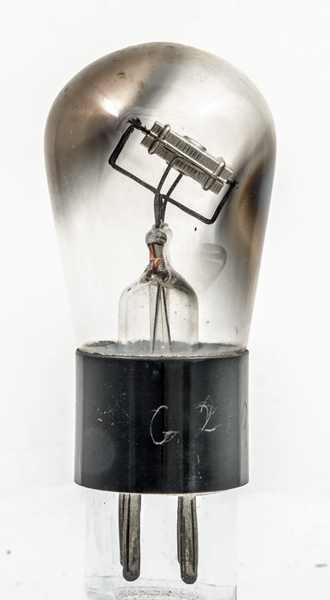

The balloon envelope is 44 mm in diameter and, excluding the B4 base pins, is 85 mm tall.
Reference: 3002.



Pin Connections
B4
1
2
3
4
a
g1
f
f



Updated April 26, 2013.
