KT35


See also:
Valves for Power Amplification Advert

Extras ▼



The KT35 is another kinkless tetrode audio output valve from M-OV designed for series heater chains in universal AC/DC sets. In 1951 it was regarded as obsolescent.
For the rated output power the valve should be operated with an anode load impedance of 4,000 Ohms.
The heater value given is for the two halves in parallel. In series the KT35 has a 300 mA heater.

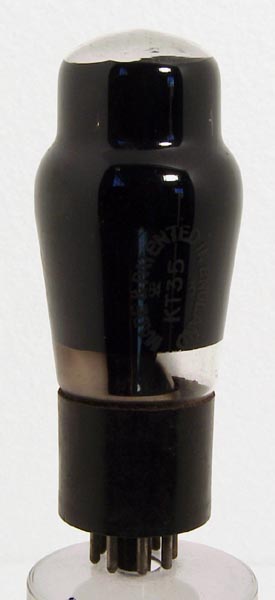

The classic envelope is 42 mm in diameter and, excluding the IO base pins, is 104 mm tall.
References: 4018, 1040 & 1043. Type KT35 was first introduced in 1940.



Pin Connections
IO
1
2
3
4
5
6
7
8
hct
h
a
g2
g1
-
h
k



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
Pout
13
0.6
200
200
-11.5
50
8.5
10.0
4.2
Updated January 01, 2017.
