8013A

Sensibly equivalent to:
CV716

Extras ▼

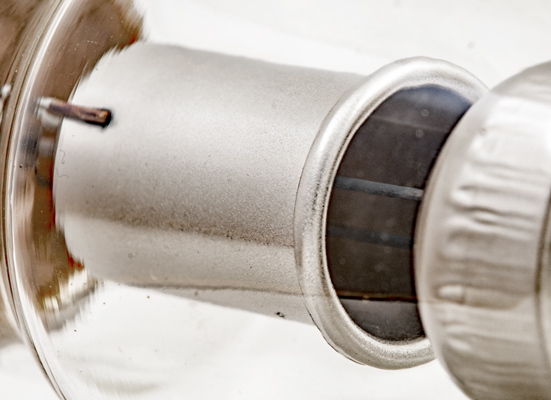

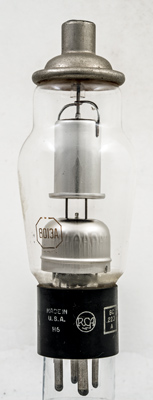

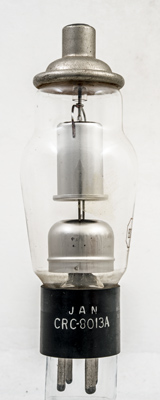

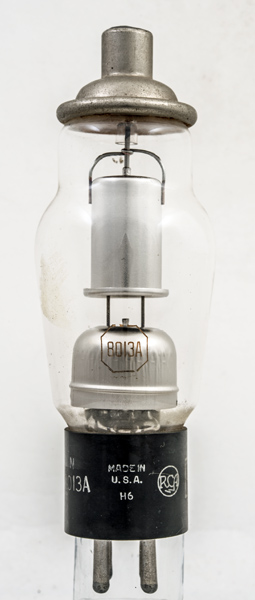

This exhibit was at one time a fairly common EHT rectifier for military and professional applications.
The peak inverse voltage is 40 kV and the peak current is 150 mA. Typical output (around 250 W) would suit the requirements of a small airborne radar transmitter.
The classic envelope is 50 mm in diameter and, excluding the UX4 base pins, is 136 mm tall.
References: Datasheet & private communication.



Pin Connections
UX4
1
2
3
4
tc
f
-
-
f
a



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
mAa
2.5
5.0
20
Thanks to Frank Philipse for supplying the above PDF datasheet.
