QQZ06-40

Sensibly equivalent to:
YL1030

Extras ▼

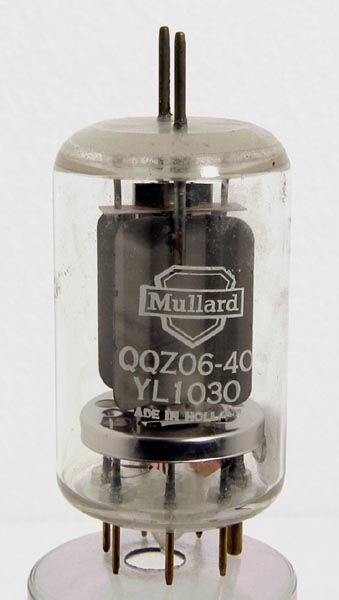

The QQZ06-40 is the quick heating version of the QQV06-40A. The valve would reach 70% of full emitting potential in half a second. These valves would be used for mobile transmitters.
The wide glass tube envelope is 42 mm in diameter and, excluding the B7A base pins, is 87 mm tall.
Reference: Datasheet. Type QQZ06-40 was first introduced in 1964.



Pin Connections
B7A
1
2
3
4
5
6
7
tc
tc
f(2)
g1(1)
g2,g2
f(1),bp,s
ic
g1(2)
f(2)
a(1)
a(2)



Absolute Maximum Operating Conditions
Tetrode
Vh
Ah
Va
Vs
mAa
mAs
Pdiss
Pout
freq
f.max
2.1
4.5
650
300
120
8.0
20W
85W
200MHz
500MHz.
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 20, 2013.
