EF95

Sensibly equivalent^¶ to:

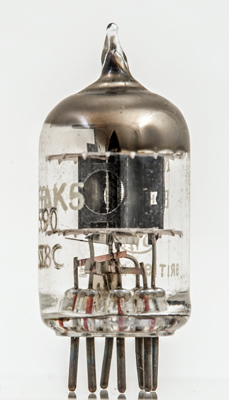

6AK5 6DL5 CV850 DP61 PM05

Mullard EF95 Advert - Mullard EF95 Advert

Extras ▼

Mullard Valves collected by Norman Taylor Other EF95 exhibits

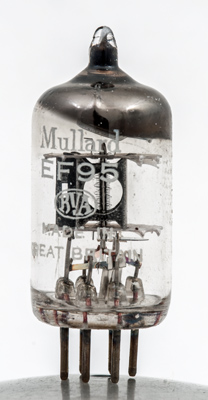

The EF95 is a low noise VHF RF amplifier pentode that is physically small and the electrode assembly is no more than a 10 mm cube.

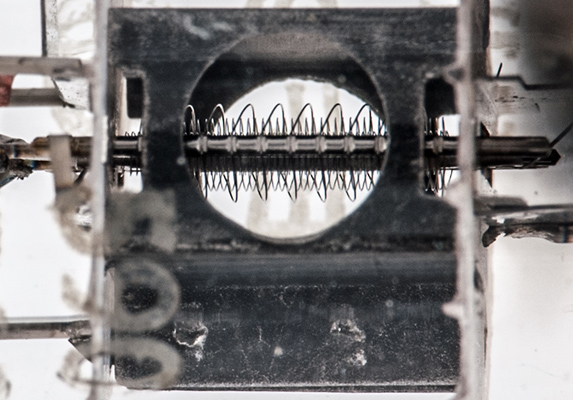

The open end of the anode allows all of the internal grids to be seen.

The notch and peen fixing of the suppressor grid is straight across the support and thus it distorts the helical winding of the grid at the fixing points. At full size the control grid can be seen.

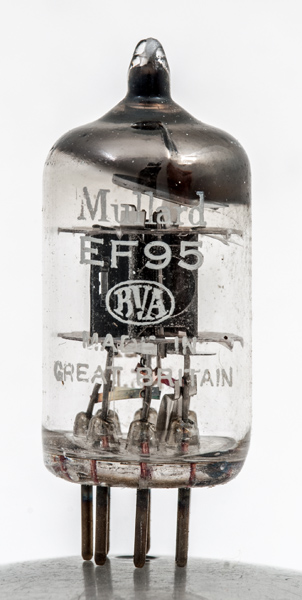

The thin glass tube envelope is 18 mm in diameter and excluding the B7G base pins, is 36 mm tall.

References: Datasheet & ¹⁰⁴⁰. Type EF95 was first introduced in 1951.

Pin Connections

B7G	1	2	3	4	5	6	7
	g1	k	h	h	a	g2	k

Absolute Maximum Operating Conditions^¶

Pentode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra	gm
	6.3	0.175	180	120	-2	7.2	2.4	0.7M	5.1

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated January 14, 2017.

shape:thin.glass.tube construction:all.glass type:pentode age:1950.1960 base:b7g heater:6.3v pins:7 pin:1.g1 pin:2.k pin:3.h pin:4.h pin:5.a pin:6.g2 pin:7.k
