CV2692

Sensibly equivalent to:
GL918 GS146

Extras ▼



The CV2692 is a gas-filled photocell that has a high sensitivity to the red end of the spectrum.
The photocathode and rod anode.
Thanks to Bob Hopkins for sending the images.

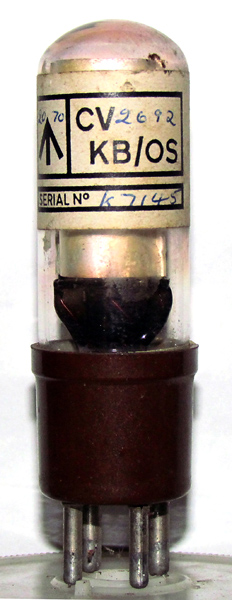

The wide glass tube envelope is 27 mm in diameter, and excluding the UX4 base pins is 88 mm tall.
Reference: Datasheet. Type CV2692 was first introduced in 1945.



Pin Connections
UX4
1
2
3
4
-
a
-
k



Absolute Maximum Operating Conditions
Photocell
Va
100
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 13, 2013.
