5J/180E

Sensibly equivalent to:
CV445

Extras ▼

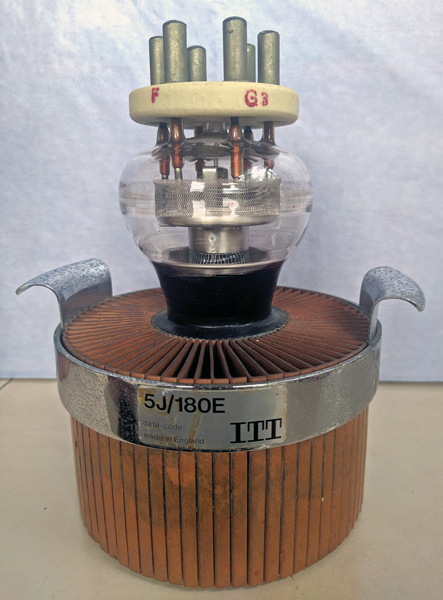

The 5J/180E is an RF power pentode with an external anode and fitted fins for forced air cooling. As a Class C power amplifier an output of 2.9 kW can be obtained across the HF region to 30 MHz.

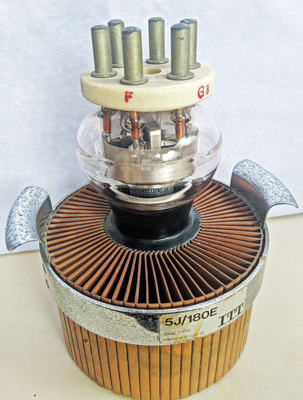

The anode and cooling fins. The ceramic support for the six base pins has each pin function printed on it.
The six pin base.

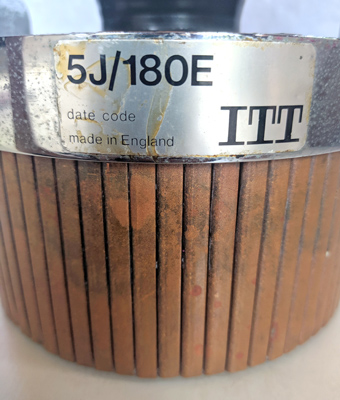

The identification plate. Although branded ITT it was made in England by STC.
Thanks to Manori M Madurawala for supplying the image.
The balloon glass envelope is 92 mm in diameter and, including the base pins, is 220 mm tall.
Reference: Data-sheet. Type 5J/180E was first introduced in 1956.



Pin Connections
1
2
3
4
5
6
tc
g3
f
g2
f
g3
g1
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
9.0
30
4.5k
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated July 28, 2020.
shape:balloon construction:pinch type:pentode age:1960.1975 base: pin:1.g3 pin:2.f pin:3.g2 pin:4.f pin:5.g3 pin:6.g1 pin:tc.a
