Eimac describe the 3X2500A3 as a medium-μ VHF transmitting triode with an anode dissipation of 2,500 Watts. Cooling is by forced air and the output power is of the order of 5 kW.
The envelope is 105 mm in diameter and, excluding the base pins, is 228 mm tall.

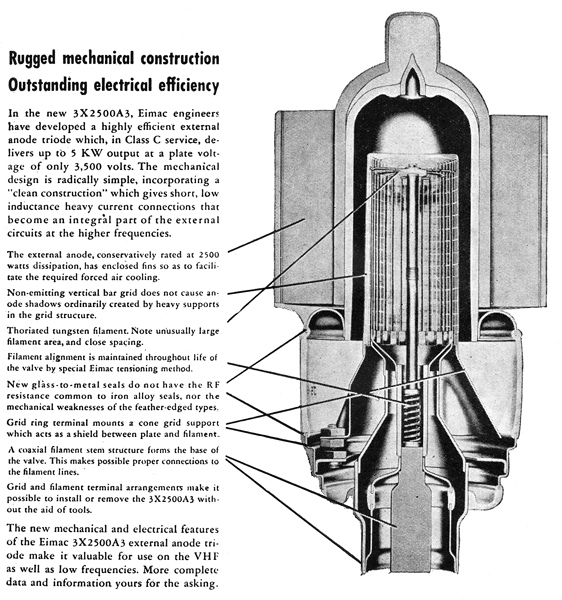

References: Data-sheet & Advert. Type 3X2500A3 was first introduced in 1946.



Absolute Maximum Operating Conditions
Triode
Vh
Ah
μ
7.5
48
20
Thanks to Frank Philipse for supplying the above PDF datasheet.
