UCF80



Extras ▼

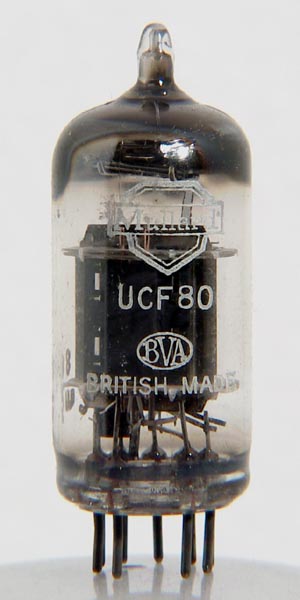

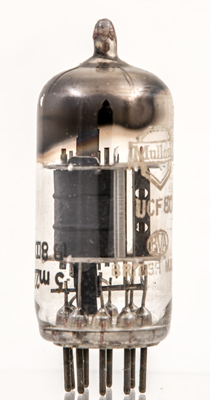

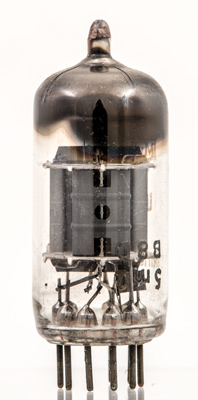

The UCF80 is the 100 mA heater version of the famous PCF80 used extensively as oscillator/mixer in VHF television receivers.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 49 mm tall.
References: Datasheet & 1040. Type UCF80 was first introduced in 1958.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(t)
g1
g2
h
h
a
k,s,g3
k(t)
g1(t)



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
27.0
0.1
170
170
-5.5
5.2
1.5
70,000
2.1



Absolute Maximum Operating Conditions
Triode
Va
Vg
mAa
100
-2.0
14.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 04, 2013.
shape:thin.glass.tube construction:all.glass type:triode.pentode age:1950.1960 base:b9a heater:100ma pins:9 pin:1.a(t) pin:2.g1 pin:3.g2 pin:4.h pin:5.h pin:6.a pin:7.k.s.g3 pin:8.k(t) pin:9.g1(t)
