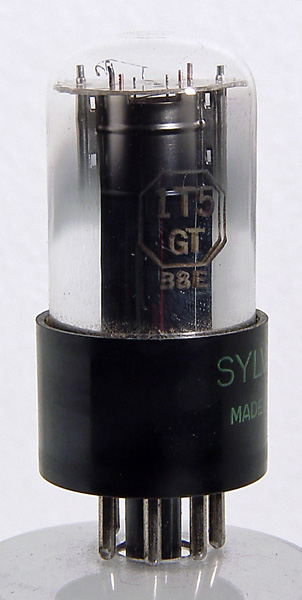

The 1T5GT is a battery audio output beam tetrode.
In single ended output service the anode load would be 14,000 Ohms. The audio output is low, but respectable for a valve operating from dry cells and having a low filament current.
We also have the 1B8GT that combines the 1T5GT and 1H5GT into a single envelope.
The wide glass tube envelope is 28 mm in diameter and, excluding the IO base pins, is 59 mm tall.
References: Data-sheet & 1043. Type 1T5GT was first introduced in 1939. See also 1939 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
nc
f+
a
g2
g1
nc
f-
nc



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
D
1.4
0.05
90
90
-6.0
6.5
1.5
250,000
1.15
0.17
7.5%
Thanks to Frank Philipse for supplying the above PDF datasheet.
