SD6

Sensibly equivalent to:
CV1989

Extras ▼

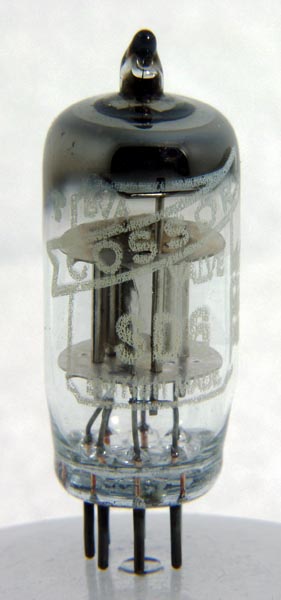

The SD6 is a single diode. The anode for a second diode is included in the envelope but no heater/cathode is present. The capacitance is small suggesting a signal diode role, possibly as a vision detector in VHF televisions.
The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 44 mm tall.
Reference: 1040.



Pin Connections
B7G
1
2
3
4
5
6
7
ic
a
h
h
k
s
ic



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
6.3
0.15
150
10.0
Updated January 13, 2013.
shape:thin.glass.tube construction:all.glass type:diode age:1940.1950 base:b7g heater:6.3v pins:3 pin:1.ic pin:2.a pin:3.h pin:4.h pin:5.k pin:6.s pin:7.ic
