UR1


See also:
Mullard Universal Valves

Extras ▼



The UR1 is a half wave power rectifier on a continental Ct8 base and dates from 1934. The data manuals from 1950 only list the UR1C on a British B5 base. The Ct8 was not popular in the UK in spite of achieving good sales in Europe.

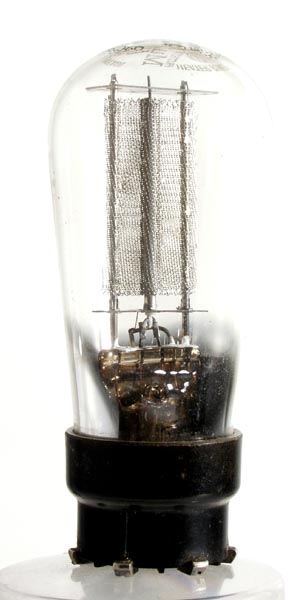

The anode is made of mesh and the cathode is quite long compared to sensibly equivalent valves such as the 1D5.
The series resistance has to be a minimum of 125 Ohms for this rectifier and the reservoir capacitor should not exceed 32 µF.
Mullard replaced this rectifier in 1939 with the CY1 (Ct8) and CY31 (IO).

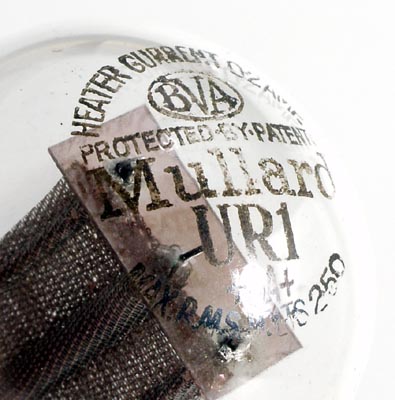

The details of the valve are etched into the top of the envelope.
The balloon envelope is 36 mm in diameter and, excluding the Ct8 base pins, is 88 mm tall.
References: Datasheet & 1043. Type UR1 was first introduced in 1934.



Pin Connections
Ct8
1
2
3
4
5
6
7
8
-
h
h
k
-
-
-
a



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
20.0
0.2
250
75
PDF scanned from an original document held by the museum
