1D5

Sensibly equivalent to:
405UA 40SUA C10B CV1267 RZ U4020 UR1C
See also:
Brimar Ten Times Tested Advert - Brimar Ten Times Tested Advert - CV1267 short entry

Extras ▼

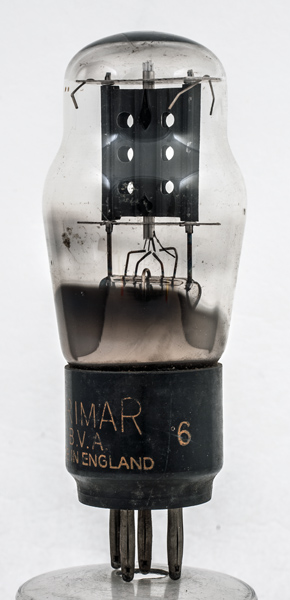

The 1D5 is a half wave rectifier designed for 200 mA series connected heaters as found in AC/DC radio receivers.
The maximum reservoir capacitor is 16 µF and the effective minimum series resistance has to be 50 Ohms.
The literature gives the UR1C as an equivalent to the 1D5, and most respects it is, but the UR1C has a 20 Volt heater at 200 mA.
The classic envelope is 42 mm in diameter and, excluding the B5 base pins, is 100 mm tall.
References: Datasheet, 1040 & 1043. Type 1D5 was first introduced in 1935.



Pin Connections
B5
1
2
3
4
5
a
-
h
h
k



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
40.0
0.2
250
100
Thanks to Frank Philipse for supplying the above PDF datasheet.
