U19

Sensibly equivalent to:
CV187 CV1508 U23 V1913 VU508

Extras ▼



The U19 high voltage half wave rectifier was designed to have an effective series resistance of 600 Ohms and to feed a reservoir capacitor of not more than 4 µF.

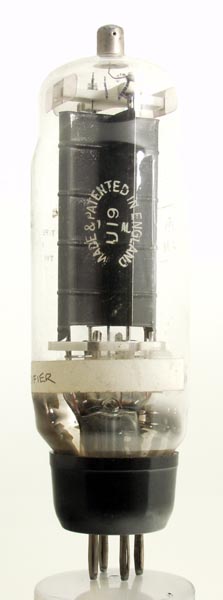

This exhibit is ruggedly constructed with ceramic supports and insulators. The anode is carbonised to aid in radiating away the heat generated in use by the intense electron bombardment.
The wide glass tube envelope is 48 mm in diameter and excluding the B4 base pins it is 157 mm tall.
Reference: Datasheet. Type U19 was first introduced in 1947.



Pin Connections
B4
1
2
3
4
tc
-
-
f
f
a



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
4.0
3.3
2500
250
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated September 04, 2013.
