CV1199

Sensibly equivalent to:
NS2
See also:
CV256 short entry

Extras ▼



The CV1199 is a voltage stabiliser. A gas discharge tube that will regulate the voltage across it when run within certain current limits. See also NS2 for more images of this Type.

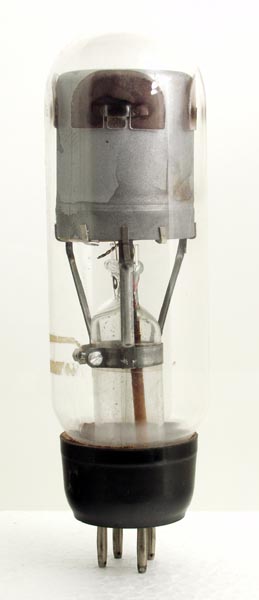

The marking where the paper label once was suggests a Marconi brand and thus an M-OV device. The construction indicates a robust design and this is confirmed by the data.
Thanks to Robert Coleman for identifying this valve.
The wide glass tube envelope is 44 mm in diameter and, excluding the B4 base pins, is 142 mm tall.
Reference: Data-sheet.



Pin Connections
B4
1
2
3
4
a
k
nc
nc



Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
97.5
180
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 05, 2022.
