UF41

Sensibly equivalent to:
121VP 12AC5 W142
See also:
EF41 & UF41 Advert

Extras ▼



The UF41 from Mullard is a vari-mu amplifier pentode. Use was for AGC controlled RF and IF amplification in superhet receivers.

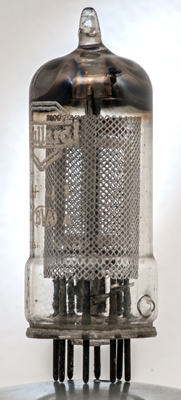

Inside the screen can be seen the wire grids. The anode is divided into two plates joined by straps top and bottom.
The thin glass tube envelope is 19 mm in diameter and, excluding the B8A base pins, is 53 mm tall.
References: Data-sheet & 1040. Type UF41 was first introduced in 1947. See also 1947 adverts.



Pin Connections
B8A
1
2
3
4
5
6
7
8
h
a
ic
ic
g2
g1
k
h



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
12.6
0.1
170
100
-2.5
6.0
1.75
0.9M
2.3
Thanks to Frank Philipse for supplying the above PDF datasheet.
