6L1



Extras ▼

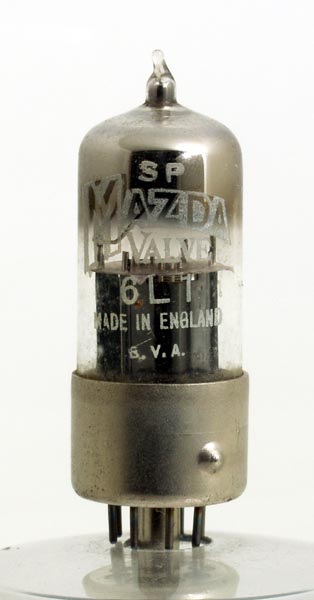

The 6L1 is a low impedance double triode. The 20L1 has identical operating characteristics but is designed for use with 12.6 Volts at 200 mA on the heater thus making it suitable for vehicle use.
The thin glass tube envelope is 19 mm in diameter and, excluding the B8A base pins, is 53 mm tall.
References: Data-sheet & 1040. Type 6L1 was first introduced in 1951. See also 1951 adverts.



Pin Connections
B8A
1
2
3
4
5
6
7
8
h
a(2)
g1(2)
k(2)
a(1)
g1(1)
k(1)
h



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.4
250
-11.5
10.0
6,200
2.8
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 23, 2013.
