CV651

Sensibly equivalent to:
991 NE16 XC16

Extras ▼

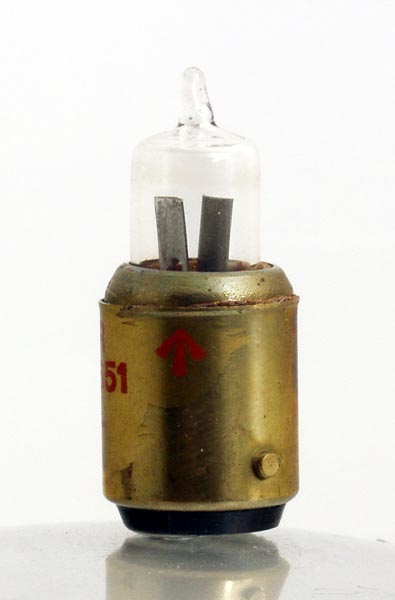

The CV651 is a neon indicator and/or voltage stabiliser fitted into a small bayonet base. It strikes at 87 Volts minimum and is designed to burn at 48 to 67 Volts with a current of 0.4 to 2.0 mA.
It is new and came in its original box. This was the same size and style as a normal B7G miniature valve box.
The thin glass tube envelope is 9 mm in diameter, the base is 14 mm diameter, and including the bayonet base pins, is 34 mm tall.
References: Data-sheet & 3002.



Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
48 - 67
0.4 - 2.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 06, 2020.
shape:thin.glass.tube construction:all.glass type:voltage.stabiliser age:1930.1940 base: pin:
