CV2346

Sensibly equivalent to:
M521 R5222 VX5028

Extras ▼

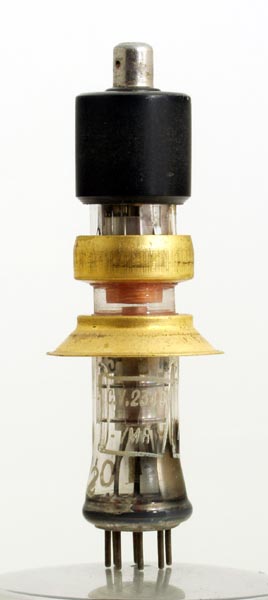

The CV2346 is a low power Klystron supplied for use with an external cavity. It was designed for X band between 8 and 10 GHz and the output power was 30 - to 70 mW and therefore suitable for local oscillator use. The VX5028 was the prototype.
The commercial R5222A in the museum is complete with resonant cavity.
The main flange on the thin glass tube envelope is 28 mm in diameter and, excluding the B7G base pins, is 75 mm tall.
References: Datasheet & 3002.



Pin Connections
B7G
1
2
3
4
5
6
7
tc
ic
k
ic
ic
h
ks
h
r



Absolute Maximum Operating Conditions
Microwave Valves
Vh
Ah
6.3
0.65
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 12, 2013.
