6D6

Sensibly equivalent to:
58 C1408 CV1900 VT-69

Extras ▼



The 6D6 is a variable μ pentode for AGC controlled amplifiers at RF and IF in superhet radio receivers.
Electrically the 6D6 (UX6 base) is identical to the Type 58 (UX6 base) and the 6U7G (IO base).

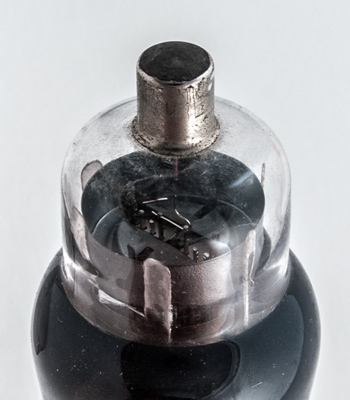

The top cap connects to both of the control grid supports.

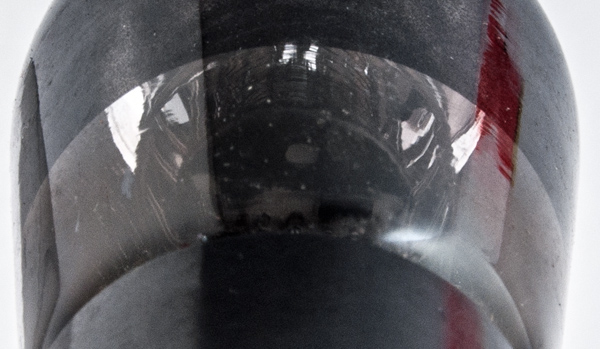

Looking up from the base shows little detail but the white oxide coated cathode tube and wire grids can be seen.

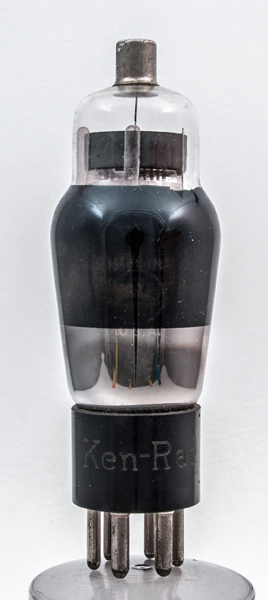

The classic envelope is 38 mm in diameter, and excluding the UX6 base pins is 104 mm tall.
References: Datasheet, 1040 & 1043. Type 6D6 was first introduced in 1936.



Pin Connections
UX6
1
2
3
4
5
6
tc
h
a
g2
g3
k
h
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
100
-3
8.2
2.0
0.8M
1.6
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 05, 2015.
