NU33

Sensibly equivalent to:
CV1120 CV1290 SU2150A VU120

Extras ▼



The NU33 is an EHT rectifier based on the Cossor SU2150A. The CV number is CV1290..
See SU2150A for full details.

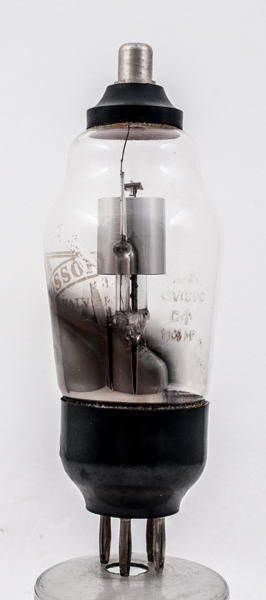

The etched identification of NU33 and CV1290.
The classic envelope is 49 mm in diameter and, excluding the B4 base pins, is 123 mm tall.
Reference: Datasheet.



Pin Connections
B4
1
2
3
4
tc
-
-
h,k
h
a



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
2.0
1.5
5000
10
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 10, 2018.
shape:classic construction:pinch type:rectifier.hw age:1930.1940 base:b4 heater:2.0v pins:4 pin:1.- pin:2.- pin:3.h.k pin:4.h pin:tc.a
