PL509



Extras ▼

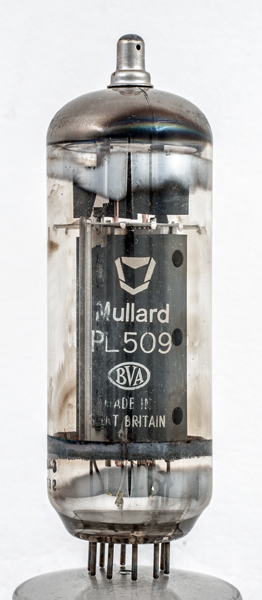

The PL509 was one of the last TV line timebase output pentode valves to be designed and this exhibit carries the later Mullard logo and was made in Great Britain.
The PL519 replaced the PL509 and was pin compatible. These valves were designed for service in colour television receivers employing shadow mask tubes. The EL509 differs only in heater requirements.
The normal anode voltage of 160 Volts is designed to be exceeded by pulses of up to 8,000 Volts and 1.4 Amps.
Radio amateurs also used such valves, known in America as 'sweep tubes' for short-wave transmitters, sometimes with the valves in parallel to increase the power available.

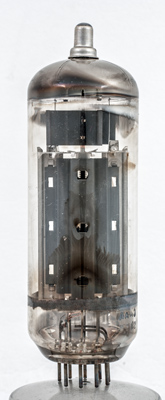

This valve has seen service as the discolouration of the glass indicates.

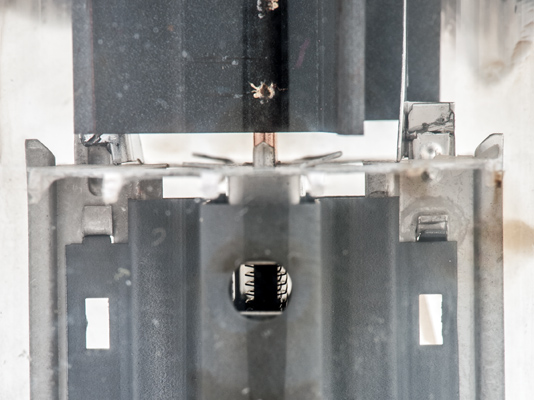

A closer view: the beam plate can be seen just within the anode. The two inner grids have the same pitch and are aligned.
The wide glass tube envelope is 38 mm in diameter and excluding the B9D base pins, is 113 mm tall.
Reference: Datasheet. Type PL509 was first introduced in 1969.



Pin Connections
B9D
1
2
3
4
5
6
7
8
9
tc
g1
g3
g2
h
h
g2
g3
g1
k
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
mAa
Pdiss
40
0.3
160
160
1400
30W
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 25, 2019.
shape:wide.glass.tube construction:all.glass type:beam.tetrode age:1960.1975 base:b9d heater:300ma pins:9 pin:1.g1 pin:2.g3 pin:3.g2 pin:4.h pin:5.h pin:6.g2 pin:7.g3 pin:8.g1 pin:9.k pin:tc.a
