CV1263

Sensibly equivalent to:
NU8 RG1-125

Extras ▼

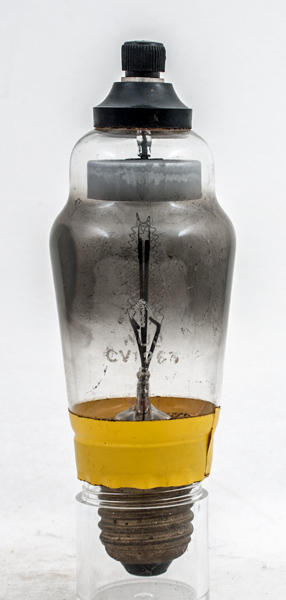

The CV1263 is a half wave mercury vapour rectifier and the prototype was the RG1-125. The old Admiralty service code is NU8 which is also present on the envelope.

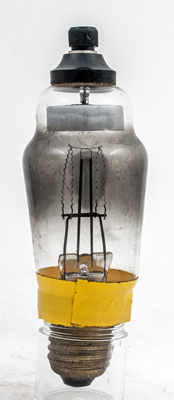

The twin corrugated filaments.

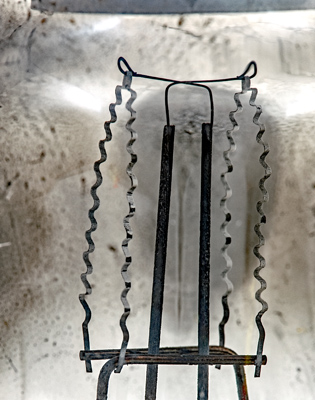

A closer view of the filaments.

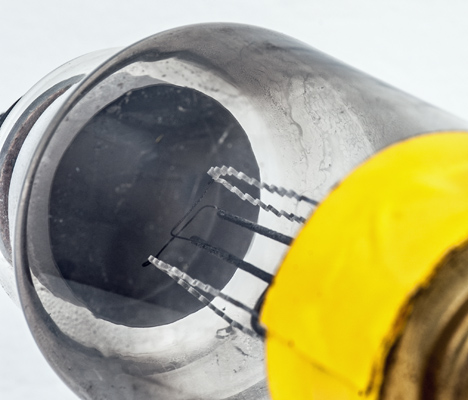

The anode is a wide open cylinder closed at the top.
The classic envelope is 50 mm in diameter, and including the ES base is 140 mm tall.
Reference: Datasheet.



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
2.0
5.0
1,250
125
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 23, 2019.
