GC10/2P

Sensibly equivalent to:
CV8282
See also:
Gas Filled Counting Tubes

Extras ▼

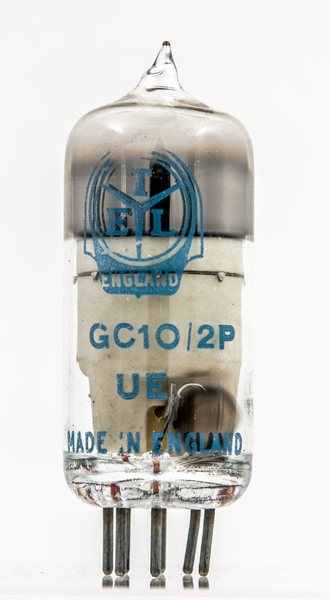

The GC10/2P is a miniature bi-directional decade counting tube for inputs of up to 1,000 pulses per second.
The ceramic separators group the common electrodes together and fix the guides and cathodes in place.

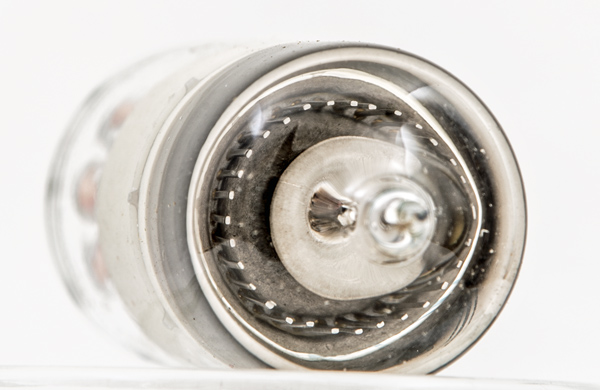

The top showing the short vertical pins that form the cathodes, first guides and second guides. The anode is the central disc.

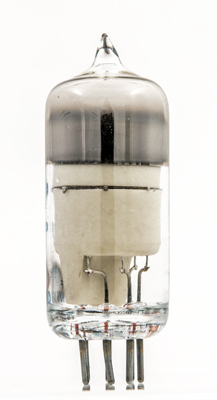

The thin glass tube envelope is 18 mm in diameter and, excluding the base pins, is 44 mm tall.
Reference: Data-sheet.



Pin Connections
B7G
1
2
3
4
5
6
7
ic
1st
k1-8
2nd
k0
k9
a



Absolute Maximum Operating Conditions
Indicator
Vh
Ah
Va
mAa
-
-
190
0.35
Thanks to Frank Philipse for supplying the above PDF datasheet.
