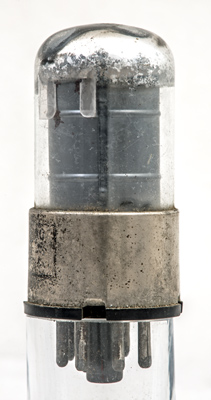

The 6SH7L is a glass envelope version of the 6SH7. The design purpose was for wideband RF and IF amplification and has a relatively high mutual conductance (gm) value to ensure a good gain-bandwidth product.![](../pics/aai0687a.jpg)
The all enclosing anode prevents inspection of the inner structure.The wide glass tube envelope is 29 mm in diameter and, excluding the IO base pins, is 59 mm tall.References: Data-sheet, 1040 & 1043. Type 6SH7L was first introduced in 1946. See also 1946 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | ![](../static/key.gif) m | h | k | g1 | k | g2 | h | a |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | ra | gm | ![](../static/pdflogo.gif)
| 6.3 | 0.3 | 250 | 150 | -1.5 | 10.8 | 4.1 | 0.9M | 4.9 |
|
Updated March 23, 2024.
|
|
