NU5

Sensibly equivalent to:
CV1261 RX3-120
See also:
CV1261 short entry

Extras ▼



This UK Navy rectifier is a half wave device and is contained in its original sealed wooden crate.

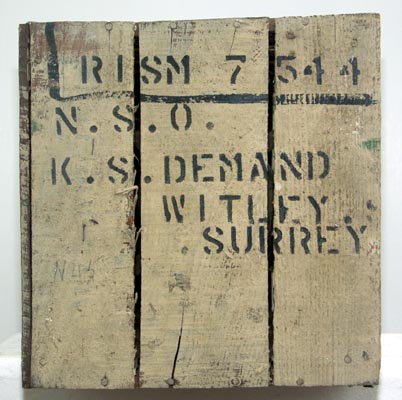

The top of the packing crate.

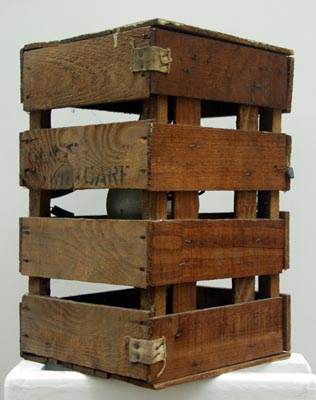

The whole crate with the NU5 inside. See crate for how these valves were packed.

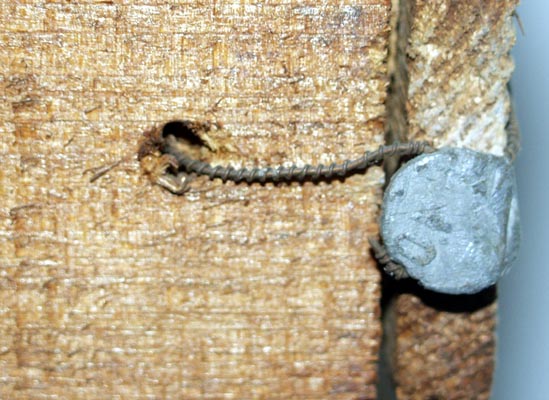

The final picture shows the seal securing the case.

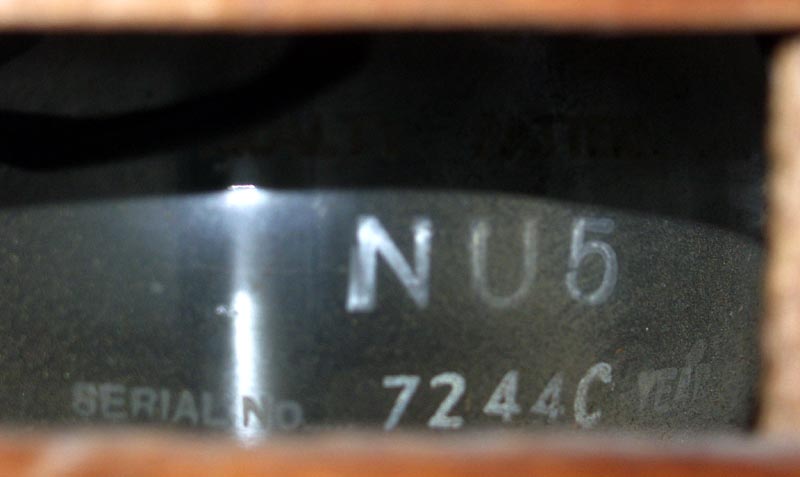

The large balloon envelope is encased in the wooden crate.
Reference: Datasheet.



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
13.5
9.7
3,000
150
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 09, 2015.
