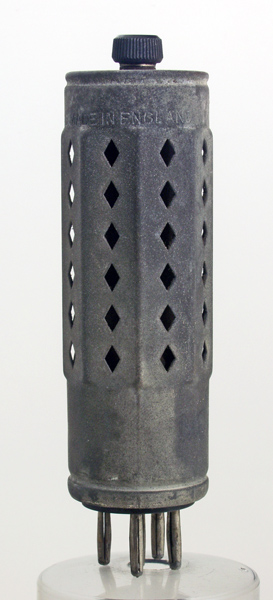

This MS4B is of Catkin construction, with a copper anode sealed directly to a glass envelope and then enamelled.The MS4B was made in both catkin and conventional glass envelope versions, but the electrode system designed for the glass envelope version would not fit the catkin envelope. Thus the /K version was redesigned and became superior to the glass version.
The enhanced image shows the type designation on the screen.
The top of the screen contains an insulated plate to carry the top cap.
