CL202



Extras ▼

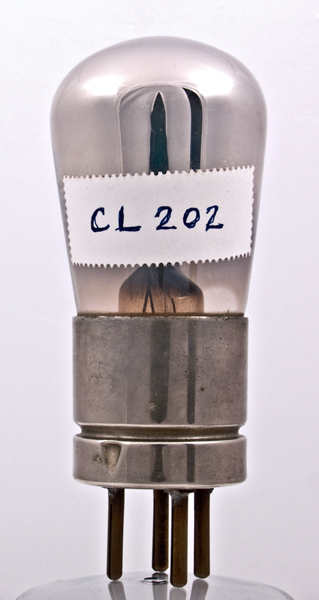

The CL202 is a French valve made by Metal. The electrodes are obscured by the silver magnesium gettering. Looking up from the base the electrodes can just be seen. The form is a horizontal cylindrical anode with a single filament strand. The classic R-type pattern.
There are feint etched markings on the bulb that give the makers name and the type designation. No further details are available.
The CL202 probably dates from the early middle 1920's and is a dull emitter.
The base shell is of nickel and the simple brass split pins fix into a composition insulator.
The balloon envelope is 39 mm in diameter, and excluding the B4 base pins is 81 mm tall.
Reference: 3002.



Pin Connections
B4
1
2
3
4
a
g1
f
f



Absolute Maximum Operating Conditions
Triode
Vh
Ah
1.7
0.06
Updated May 01, 2013.
