6BN6

Sensibly equivalent to:
6KS6 CV3616
See also:
Gated Valves - Hitachi 6BN6 Box - The Gated-Beam Valve

Extras ▼



Type 6BN6 is a late 1940s 'gated beam' valve in which a carefully formed electron sheet or beam is gated, by control elements into a series of pulses.
The data-sheet on 6BN6 & 6BN6 gives a detailed description of the valve and use and is in two parts. The data-sheet here gives the usual operating details.

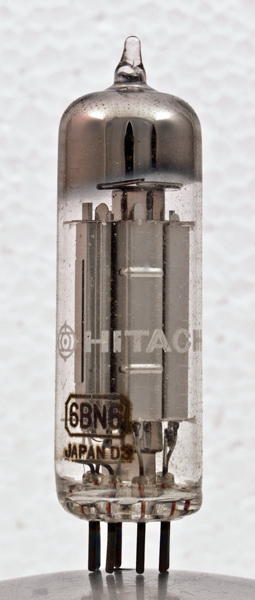

The segmented electrode system. The cathode is on the left and the anode, within the screening box, on the right.

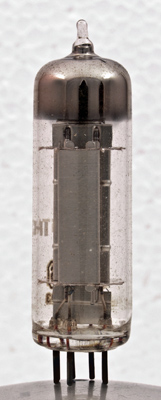

Looking at the back of the anode box.

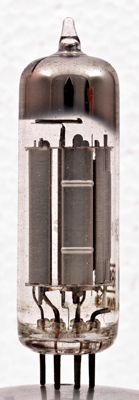

The insulated heater can be seen on the lower right.

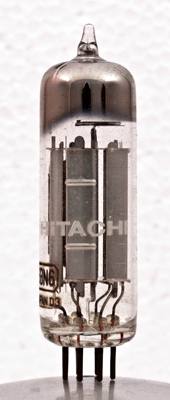

The thin glass tube envelope is 17 mm in diameter and, excluding the B7G base pins, is 57 mm tall.
References: Data-sheet & Brian Cuff. Type 6BN6 was first introduced in 1965.



Pin Connections
B7G
1
2
3
4
5
6
7
k
g1
h
h
g2
g3
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
6.3
0.3
80
60
-1.3
0.23
4.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated November 28, 2020.
shape:thin.glass.tube construction:all.glass type:pentode age:1940.1950 base:b7g heater:6.3v pins:7 pin:1.k pin:2.g1 pin:3.h pin:4.h pin:5.g2 pin:6.g3 pin:7.a
