CT-15+


See also:
Cleartron CT10, CT15, CT15+, CT25, CT25B & CT215H Valves Advert - Cleartron Brand Advert

Extras ▼



The CT-15+ is an audio output triode with a 2.0 V filament. The anode voltage range is 60-120 Volts.
It was in 1926 that Cleartron introduced their plus range of audio output valves.

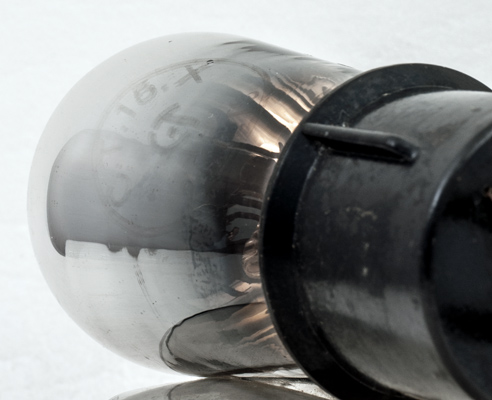

The silvering of the envelope obscures the electrodes. Etched into the glass is the Type designation CT15+ with the plus looking like an X, the CT logo and 2 Volts.

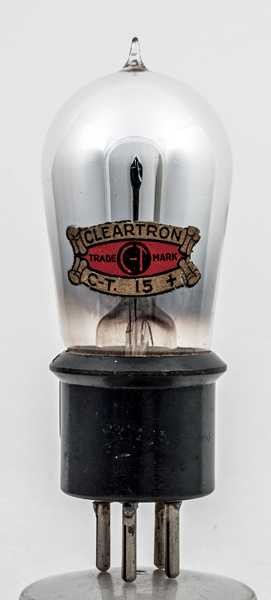

The balloon envelope is 40 mm in diameter, and excluding the B4 base pins is 98 mm tall.
References: 1003 & 1043. Type CT-15+ was first introduced in 1926.



Pin Connections
B4
1
2
3
4
a
g1
f
f



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
2.0
0.3
120
-4.5
-
5,000
0.7
Updated May 16, 2019.
shape:balloon construction:pinch type:triode age:1920.1930 base:b4 heater:2.0v pins:4 pin:1.a pin:2.g1 pin:3.f pin:4.f
