DP13-34



Extras ▼

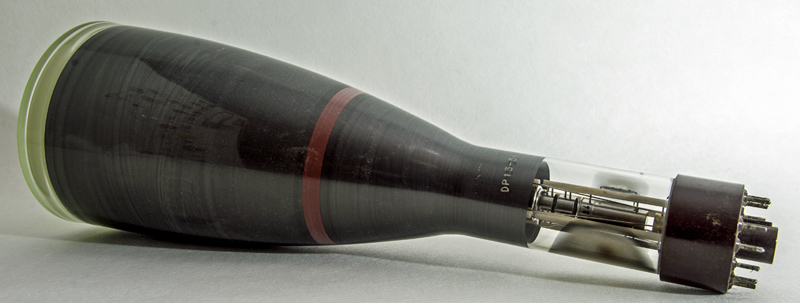

The DP13-34 is an instrument CRT with a flat face-plate and dual phosphor screen. Blue short persistence and yellow-green long persistence. It was designed for oscilloscope use and has post deflection acceleration to give a bright trace and high deflection sensitivity.
The tube was made in three different phosphor versions DB13-34 - short persistence blue trace, DG13-34 - medium persistence green (normal 'scope use) and this one.

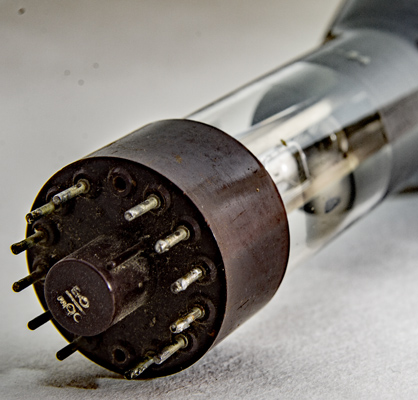

The 14 pin base has 12 pins fitted.

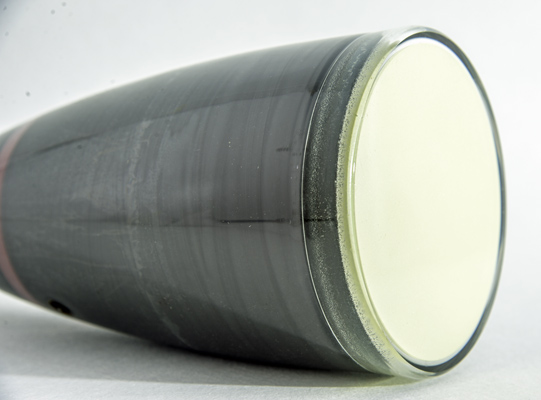

The perfectly flat face-plate allows accurate measurements to be made.
The end window envelope is 51 mm in diameter and, excluding the B14A base pins, is 410 mm tall.
Reference: Data-sheet. Type DP13-34 was first introduced in 1957.



Pin Connections
B14A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
sc
h
k
g1
ic
g3
-
Y1
Y2
a,a2,a4
X1
X2
-
-
h
a5



Absolute Maximum Operating Conditions
CRT
Vh
Ah
Va
6.3
0.6
5,000
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated July 04, 2020.
