EY88

Sensibly equivalent to:
6AL3

Extras ▼

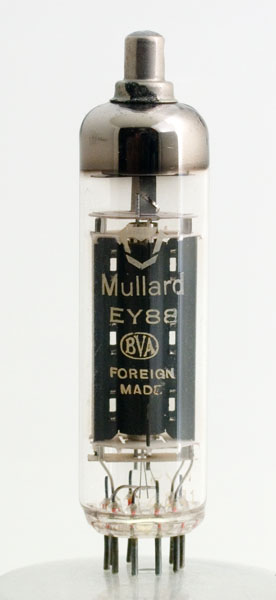

The EY88 is an efficiency diode for television line scan service. This is normally found as the PY88 with a 300 mA heater for chain use. The EY88 would be powered by an winding on the line output transformer.
The peak voltage can reach 6,000 Volts and the peak current can rise safely to 550 mA.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 78 mm tall.
Reference: Datasheet. Type EY88 was first introduced in 1959.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
tc
ic
ic
ic
f
f
ic
ic
ic
a
k



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
6.3
1.55
Thanks to Frank Philipse for supplying the above PDF datasheet.
